Rope hoists
1. DHR rope hoist
DHR rope hoists with compact design and low deadweight stand out due to their small external dimensions and a further reduced C dimension. This makes the best possible use of the working space for crane applications or stationary equipment.
DHR rope hoists fulfil almost any requirement:
– EK-DHR: monorail hoist, optimised for use on single-girder cranes or monorails
– G-DHR: basic hoist for plant engineering
2. DVR rope hoist
– Different application types: Foot-mounted hoist, low-headroom monorail hoist, double-rail crab and standard-headroom monorail hoist (with/without articulated trolley)
– Control system: conventional contactor control or provided by the customer
– Variable-speed or two-stage drive solutions
– Control concept exactly as required: cable-connected or radio control
– Wide range of options available
– Additional smart features can be integrated for safe and convenient load handling

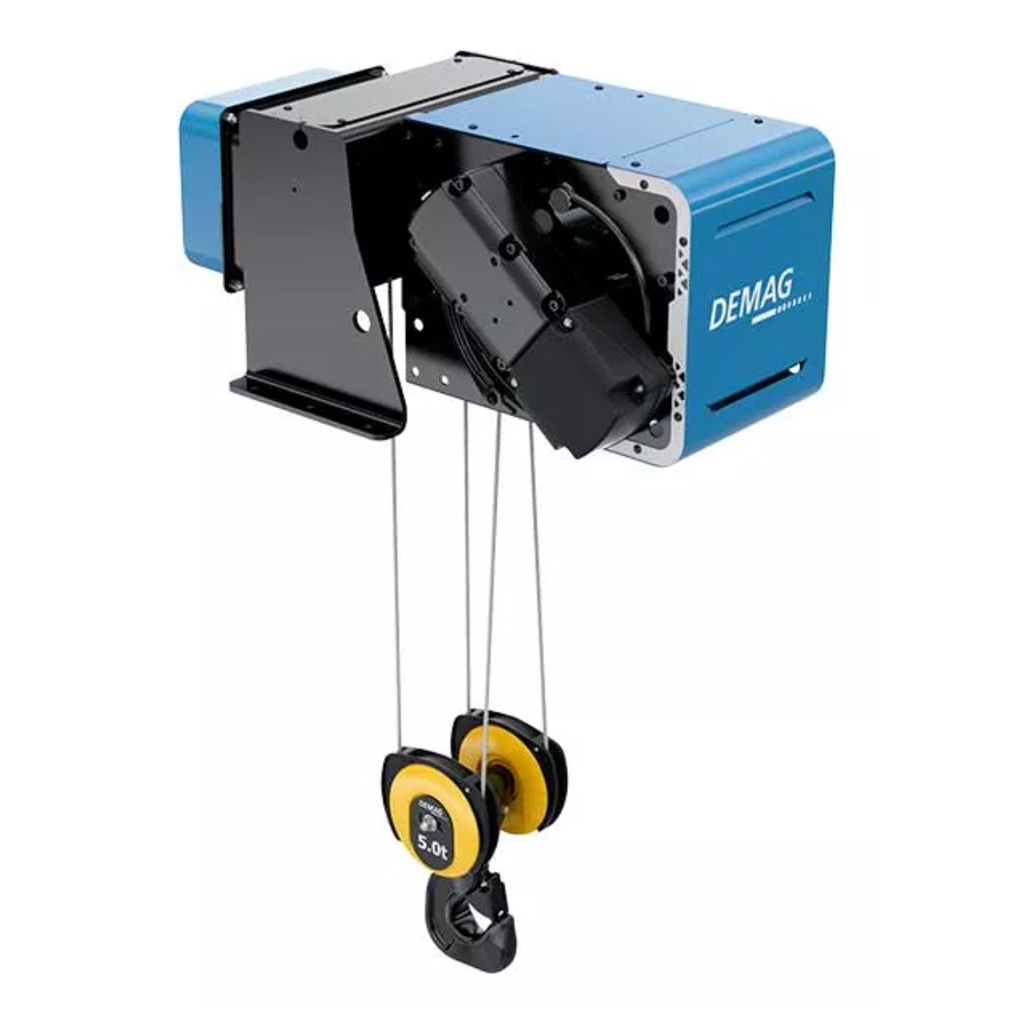

F-DVR foot-mounted hoist
– For stationary applications or for special trolleys
– Can be used in four mounting positions, each with one lead-off direction
– Load capacity: up to 80 tonnes

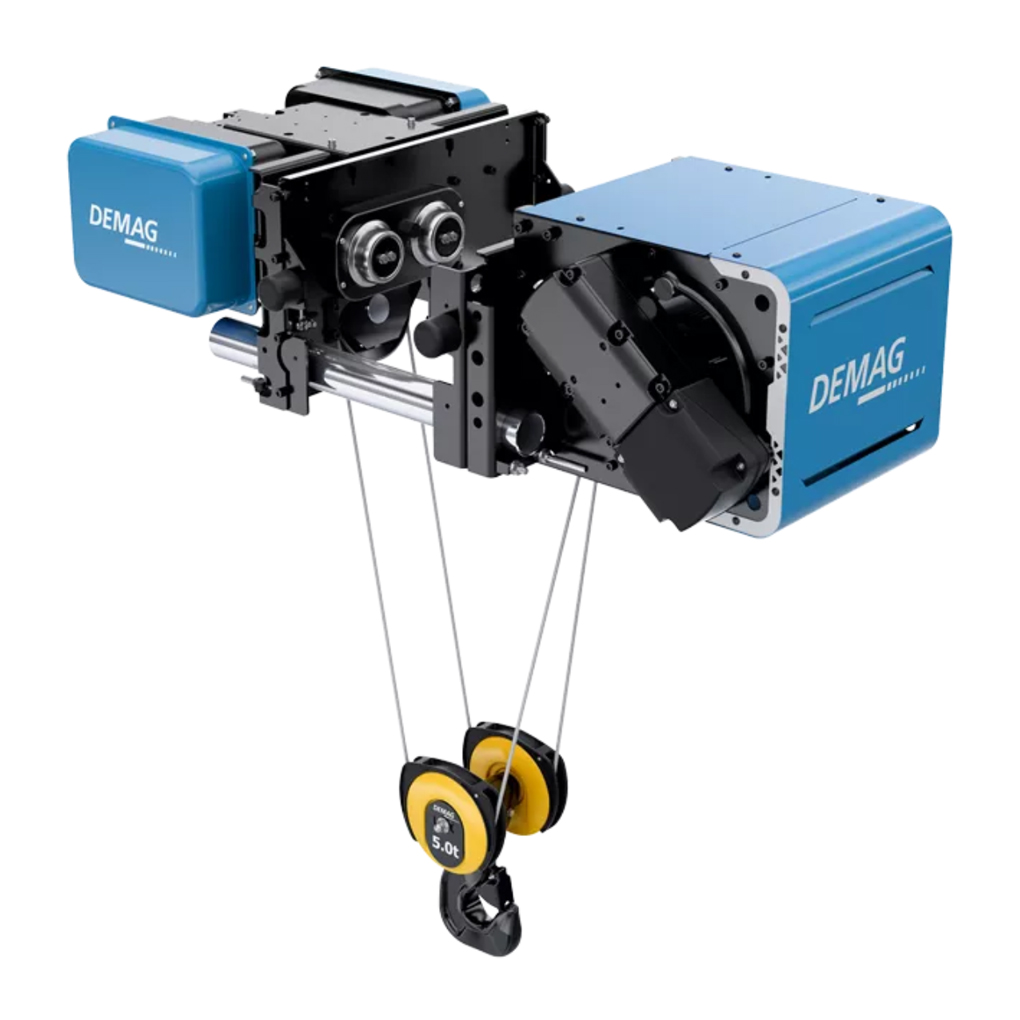

EU-DVR standard-headroom monorail hoist
– For use on monorails
– EUD-DVR for rails with radius
– Load capacity: up to 40 tonnes

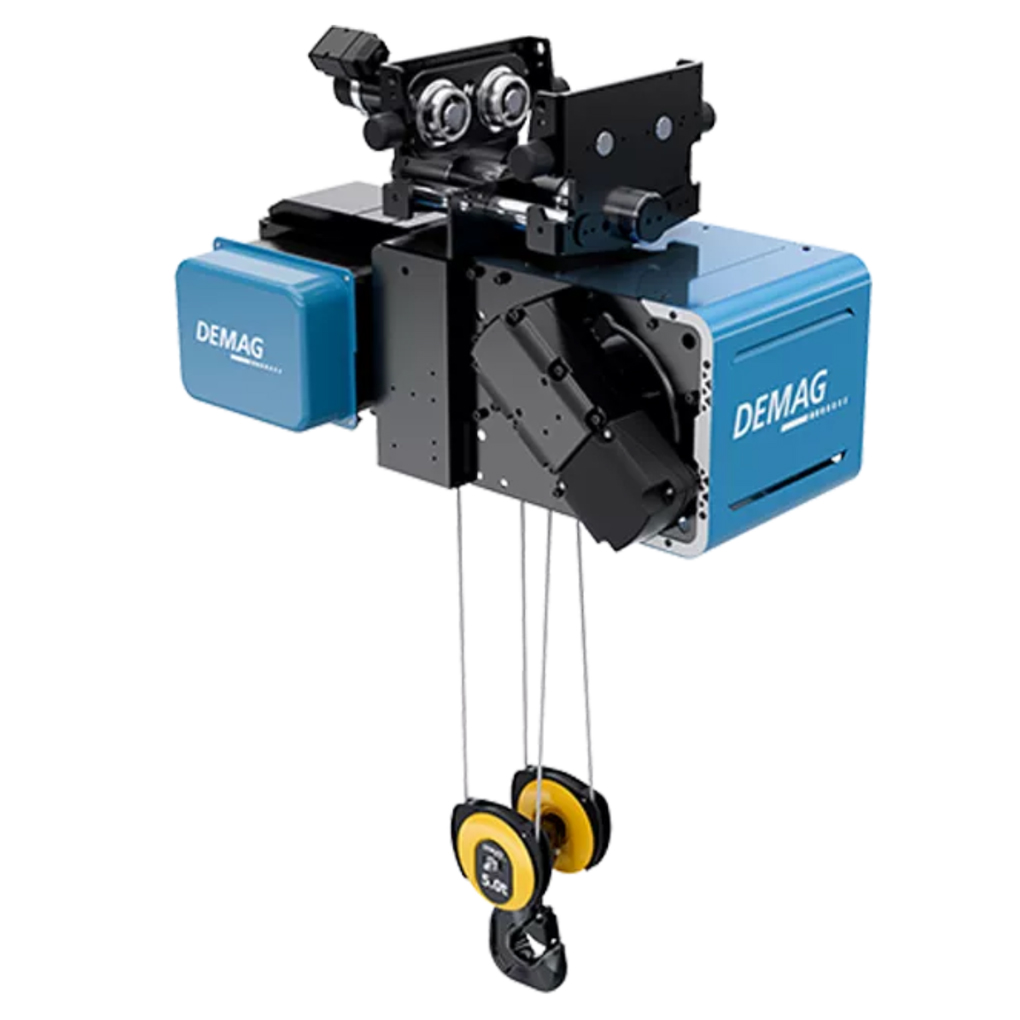

EK-DVR low-headroom monorail hoist with optimised headroom
– For crane applications with compact dimensions and reduced approach dimensions
– Lift-off and derailment protection
– Two driven wheels
– Load capacity: up to 12.5 tonnes

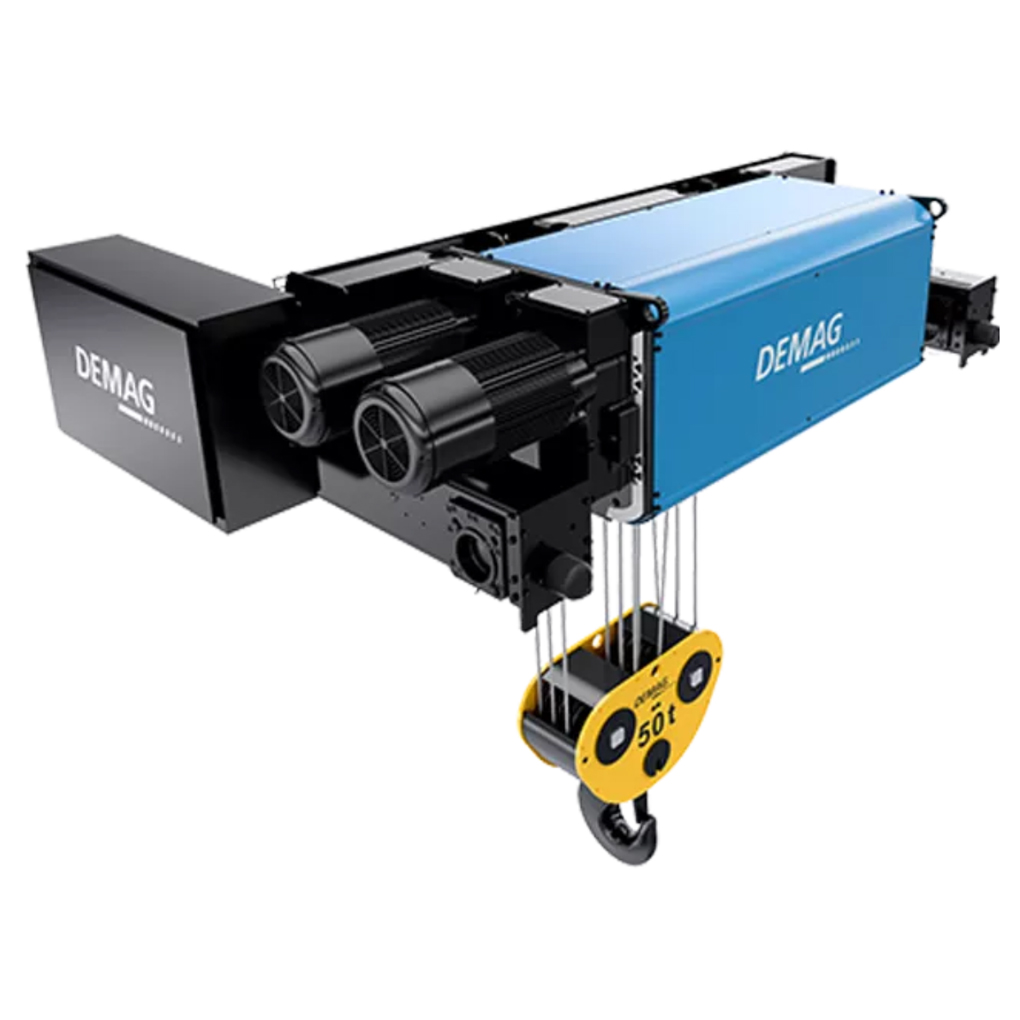

EZ-DVR double-rail crab
– Narrow gauge track (from 900 mm)
– Uniform distribution of wheel loads
– Versatile designs (low, medium, high connection)
– Two drive units (no open gears)
– Service platform available as an option
– Load capacity: up to 80 tonnes
– Two hoists on one trolley available as an option

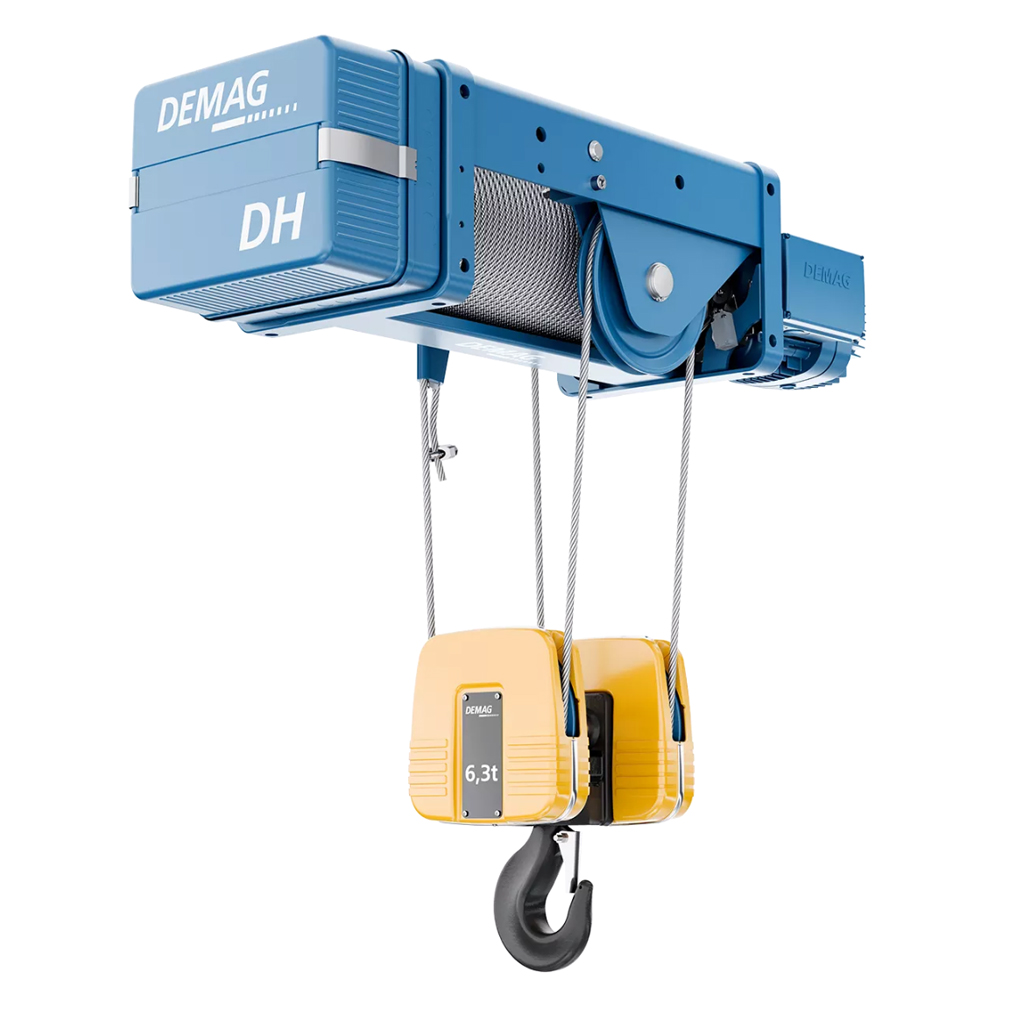

3. DH The hoist unit

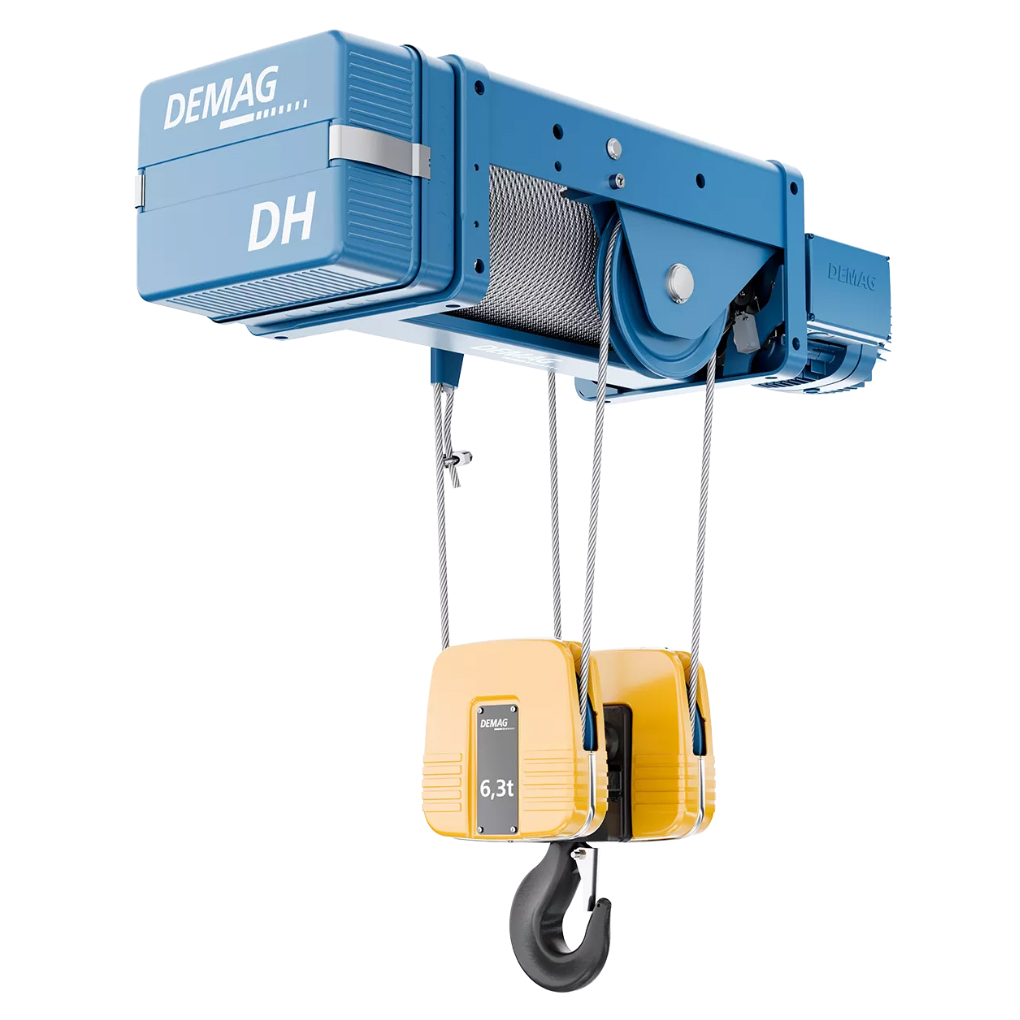

Direct connection of Demag F-DH hoist units
– Square frame design can be mounted on any side.
– Load capacity: up to 100 t.

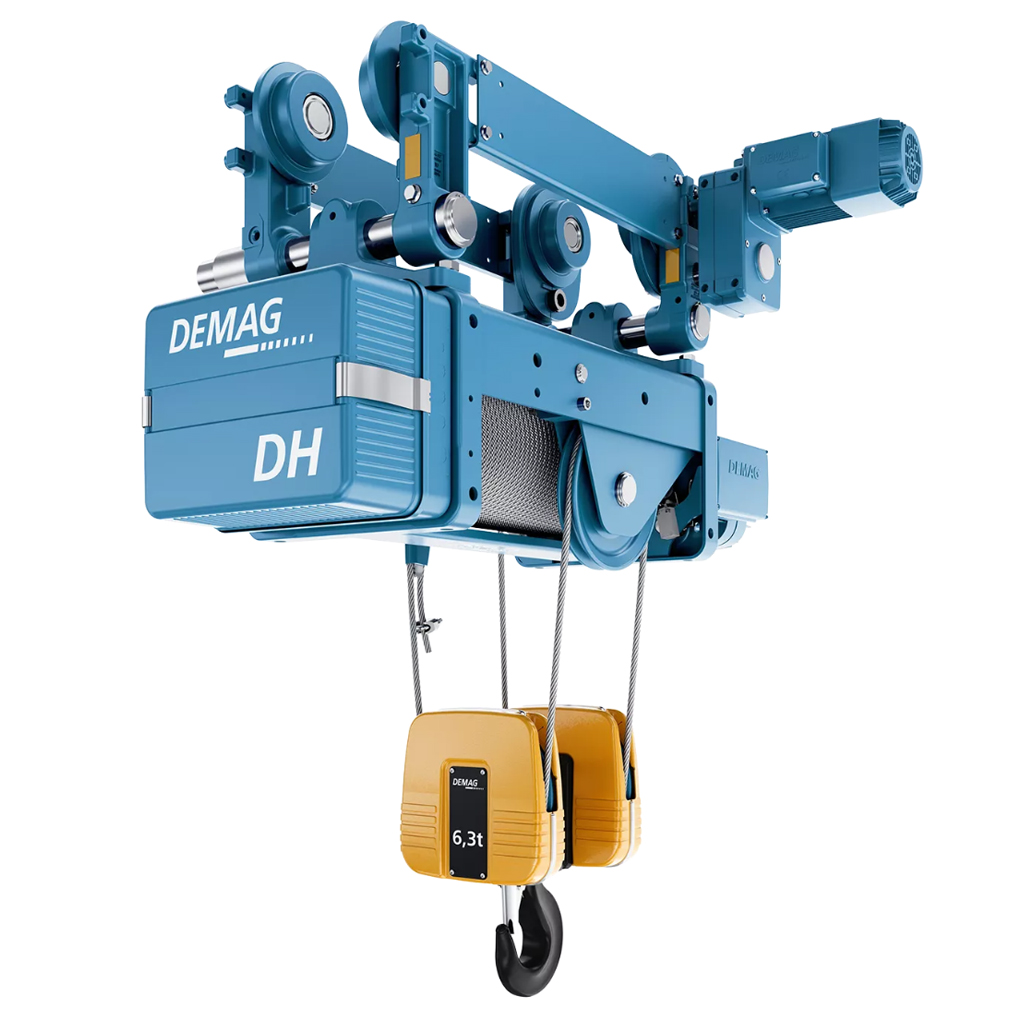

EK-DH low-headroom monorail hoist
– Trolley with favourable C-dimension.
– Also available as an articulated trolley.
– Load capacity: up to 16 t

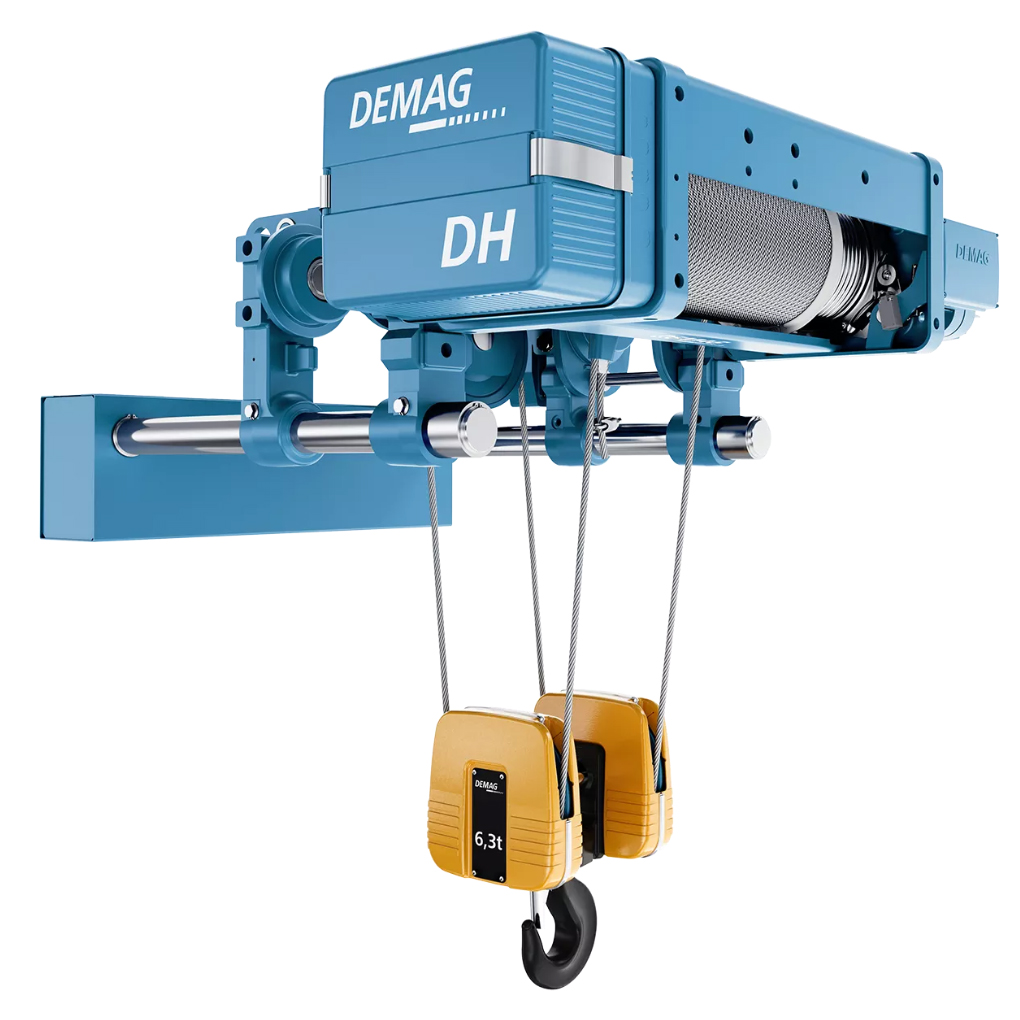

EU-DH standard-headroom monorail hoist
– Cost-effective solution for monorails with infinitely variable flange width adjustment.
– Also as EUD-DH articulated trolley.
– Load capacity: up to 16 t (optionally also up to 50 t).

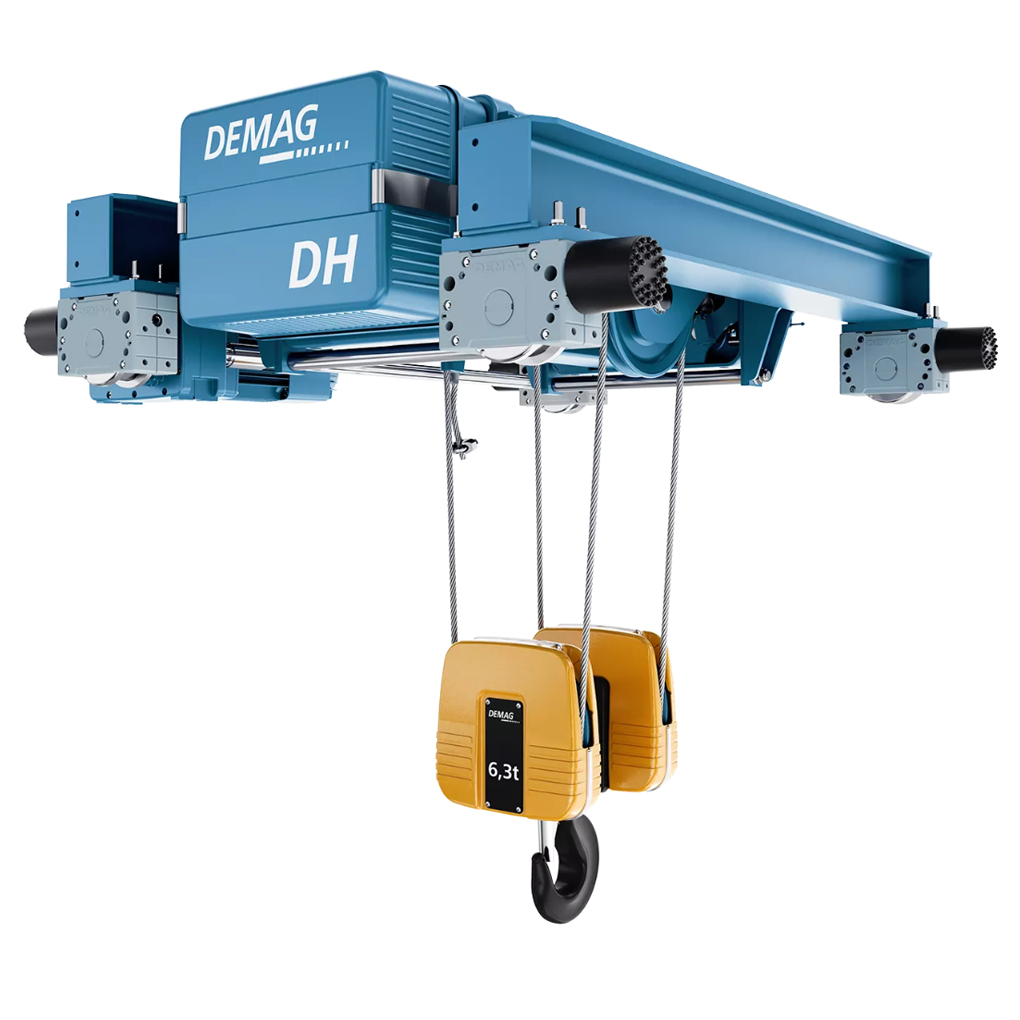

EZ-DH double-rail crab
– For higher load capacities on double-girder cranes; optimum use of space thanks to low-headroom design and favourable approach dimensions.
– Load capacity: up to 100 t.
