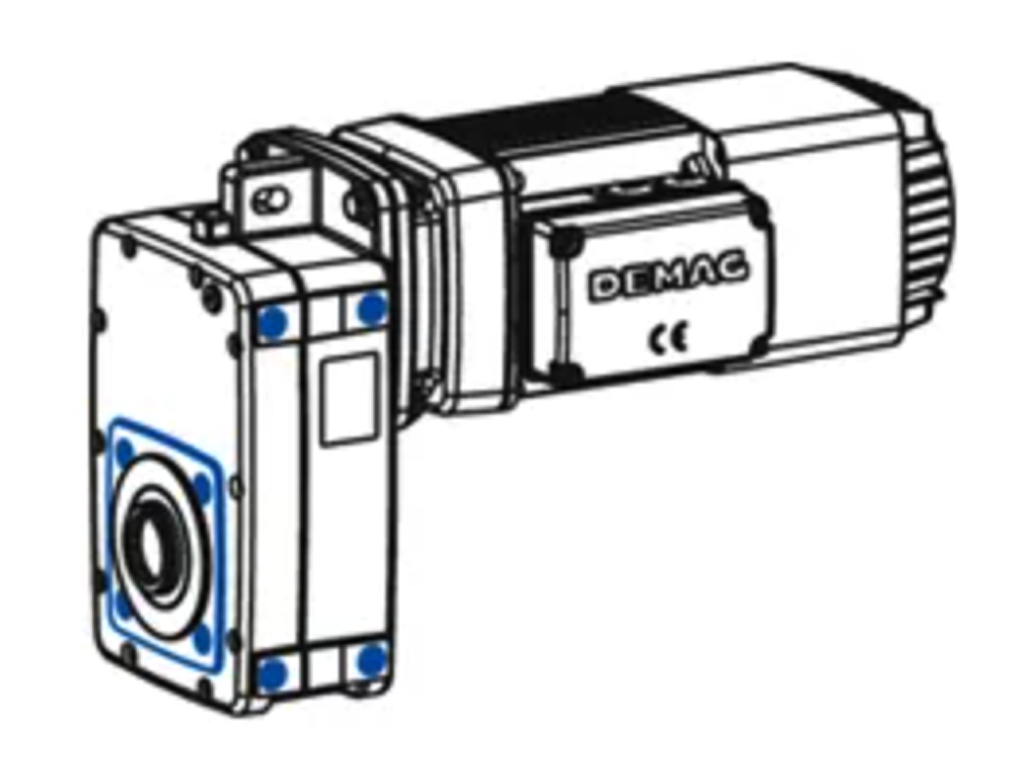

1. Offset geared motors

Our offset geared motors are specially designed for space-saving drive solutions. The housing design offers good ground clearance for travel applications at ground level. The large center distance between the parallel gearbox shafts enable these units to be used in a central drive arrangement, e.g. when fitted with shaft ends on both sides. What else do they offer?
– Wide range of transmission ratios
– Cost-effective solutions with high efficiency
– Practical designs for a variety of travel applications
– 9 gearbox sizes
Maximum flexibility
– 9 gearboxes for torques from 160 to 13,800 Nm
– Direct input or coupling connection
– Drive shafts in 5 variants
– 5 housing designs

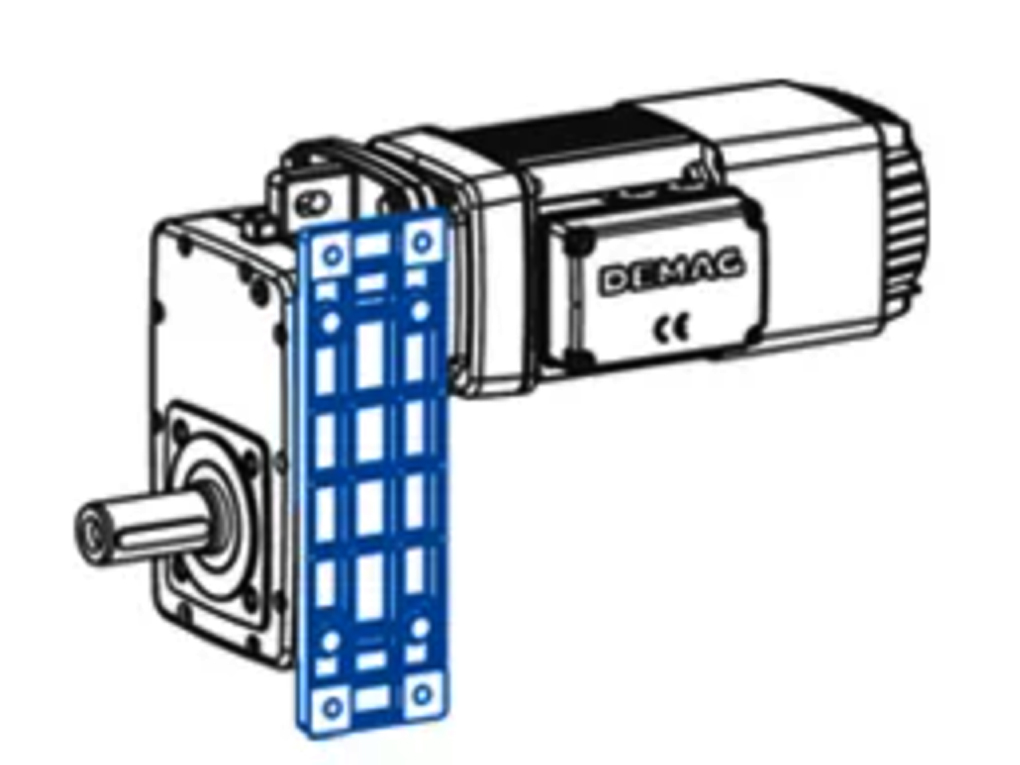

Torque bracket type AM 10-40

Universal type AU 20-90

Flange-mounted type AF 20-90

Foot-mounted type AG 30-90

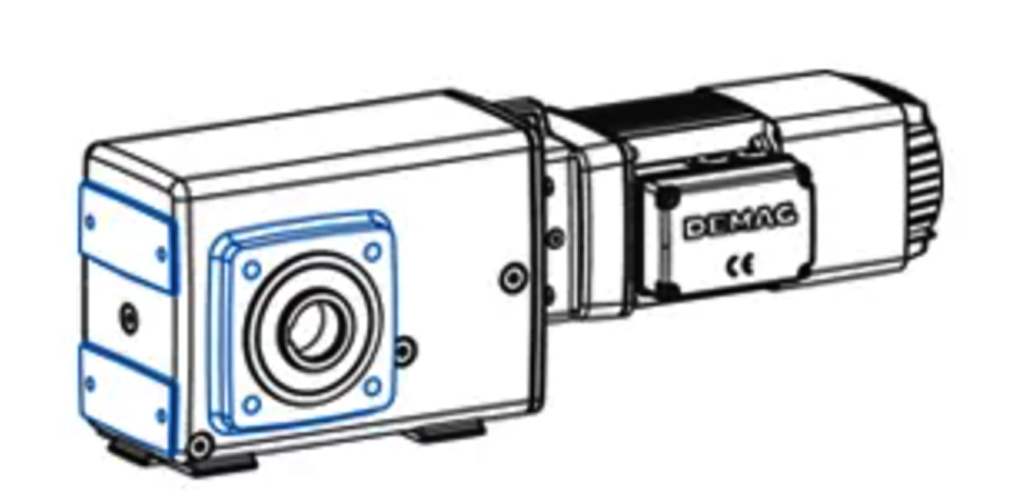

2. Angular geared motors

Our angular geared motors feature an extremely compact design – which makes them suitable for a wide variety of applications. They enable efficient travel drive solutions to be implemented with ease, even with narrow track gauge dimensions. The basis is provided by outstanding parameters:

– large torque range from 120 to 12,000 Nm

– wide range of transmission ratios

– particularly smooth operation

– bevel-wheel gearbox with high efficiency

– 10 gearbox sizes.

Maximum flexibility

– 10 gearbox sizes with torques from 120 to 12,000 Nm

– Hypoid or bevel-wheel gearbox

– Direct input or coupling connection

– Drive shafts in 5 variants

– 4 housing designs

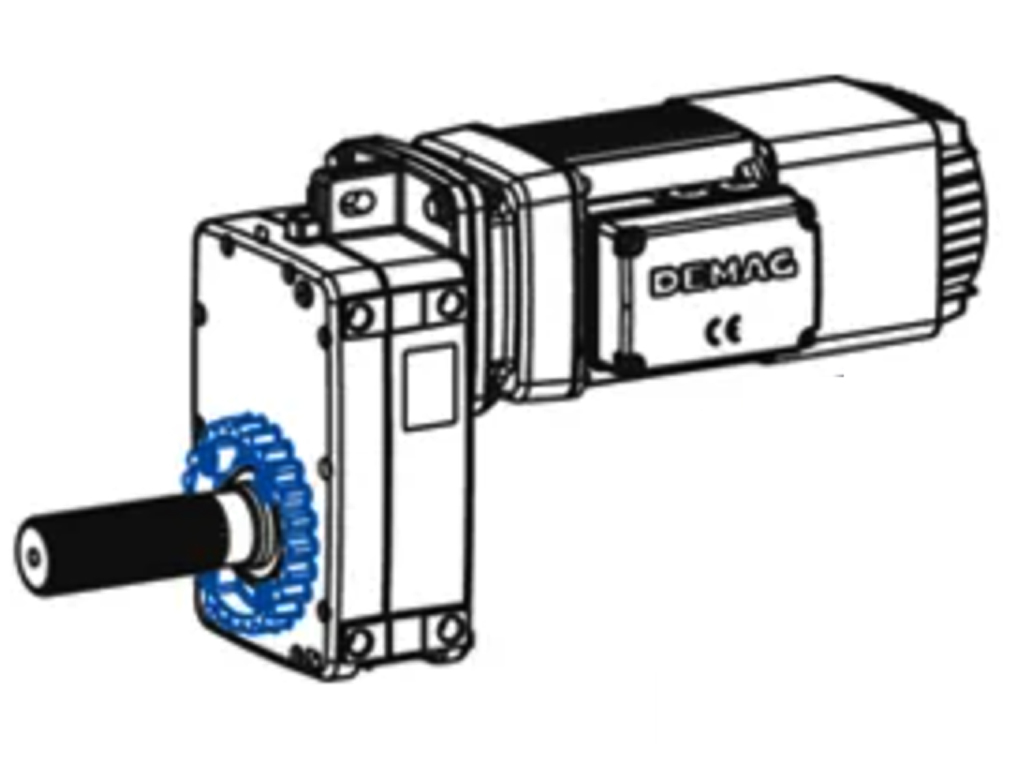

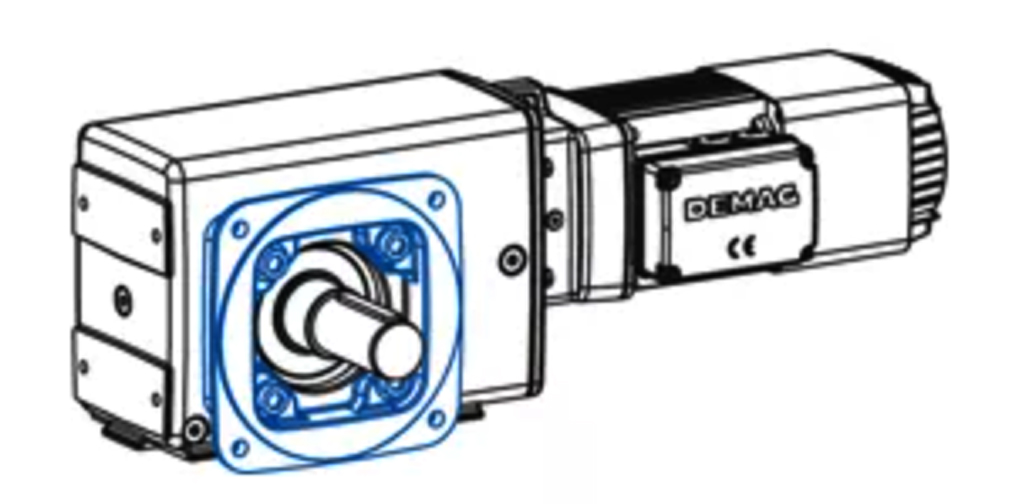

Universal type WU

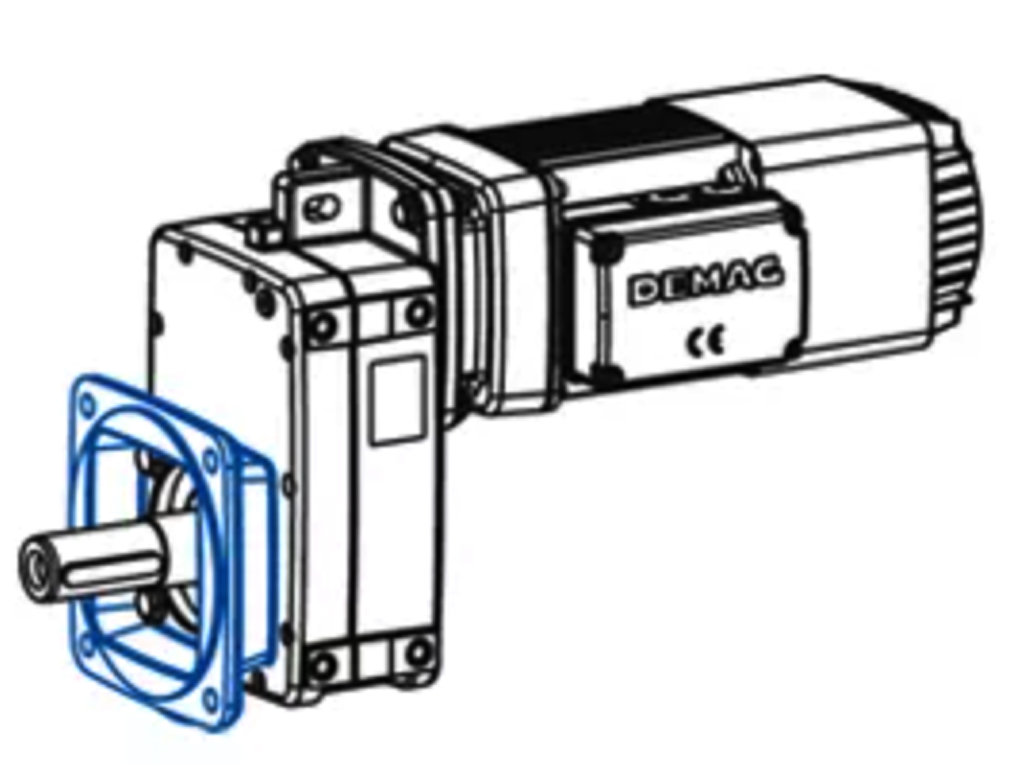

Flange-mounted type WF

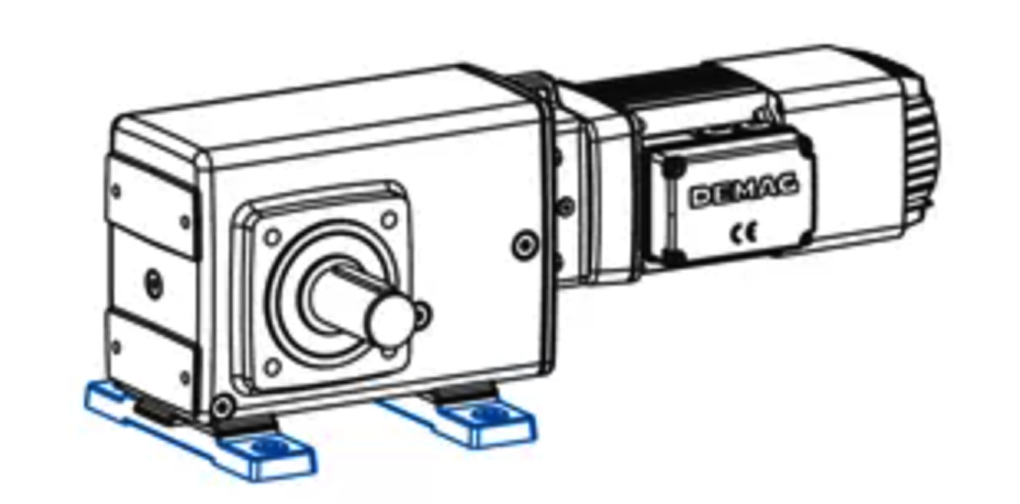

Foot-mounted type 1 WG – bottom connection

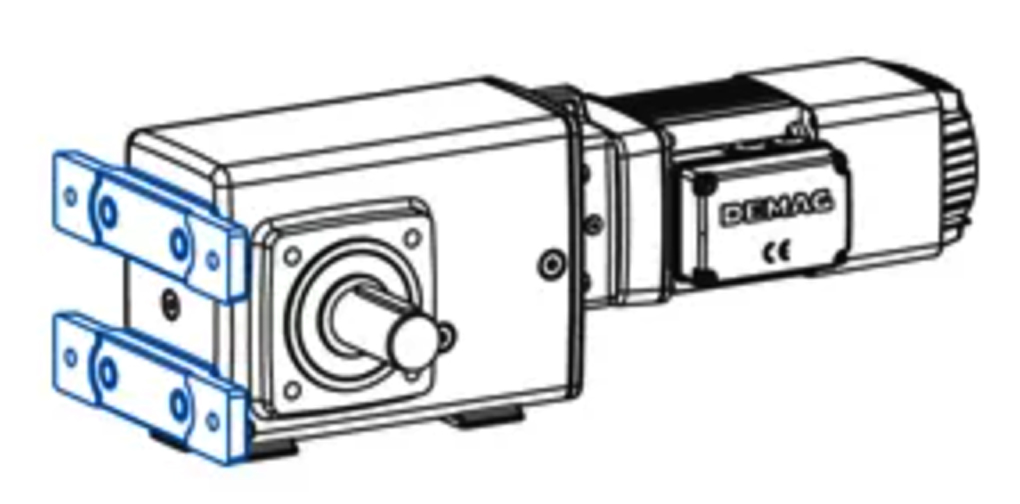

Foot-mounted type 2 WG – end connection

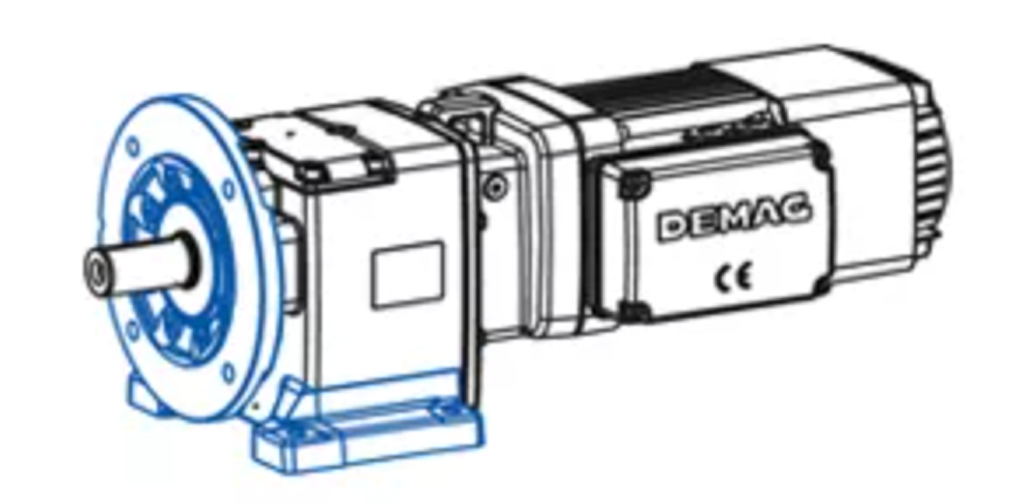

3. Helical geared motors

Above all, our helical geared motors offer one outstanding benefit: their rugged design. They enable high radial forces to be accommodated on the output shaft in a wide torque range. Other features:

– torque range from 90 to 550 Nm

– excellent efficiency

– coaxial design

– 5 gearbox sizes

– 3 housing designs.

Maximum flexibility

– Gearboxes for torques from 90 to 550 Nm

– Direct input or coupling connection

– 3 housing designs

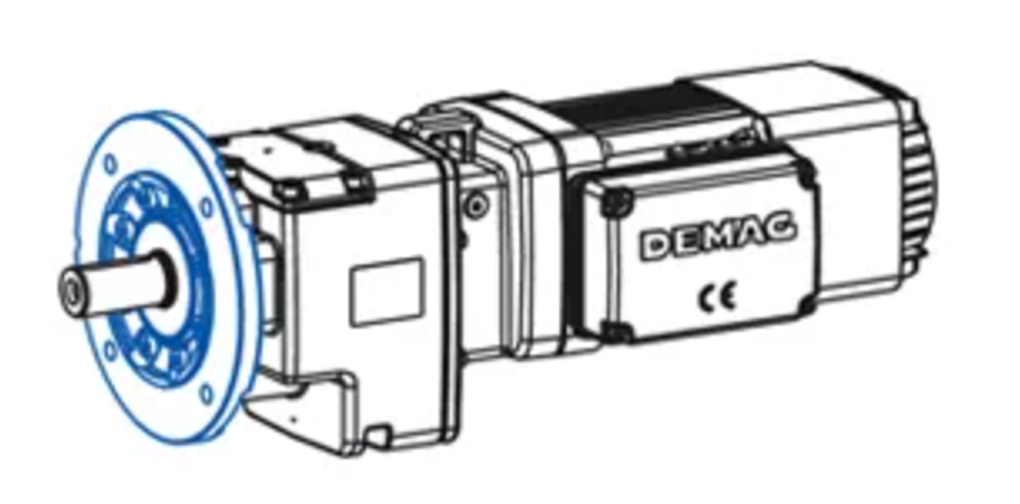

Flange-mounted type DF

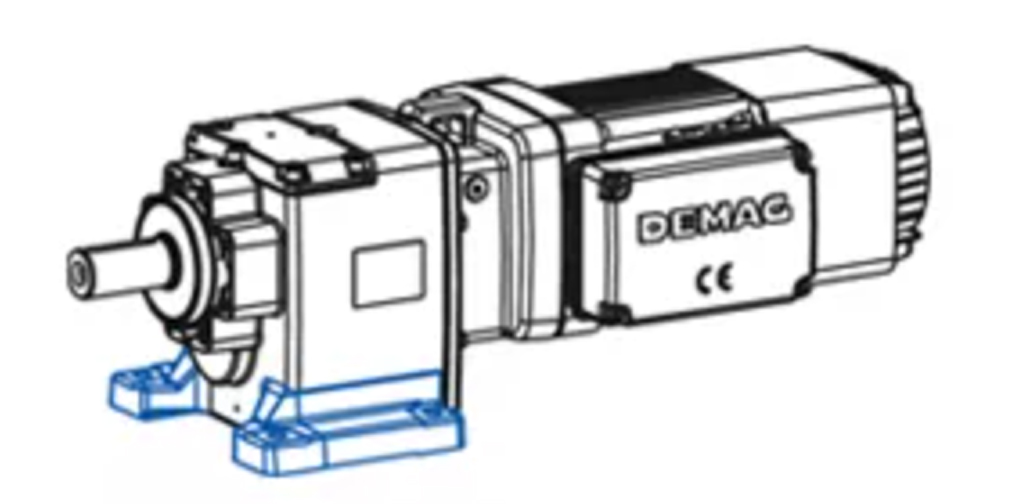

Foot-mounted type DG

Foot / flange-mounted type DU 11-41

4. FG microspeed units

Our FG microspeed units can handle tough applications. They are extremely resilient to vibrations and increased ambient temperatures. Microspeed drives consist of main and microspeed motors that are connected by means of microspeed gearboxes, which enables them to be used for wide speed ratios in rugged, simple and cost-effective solutions. They provide for:

– maximum positioning accuracy

– high switching frequency

– movement of large masses in short cycles

– implementation of extremely high speed ratios of up to 500:1.
